Algorithm Development: Advanced Features

This page explains features that were not demonstrated in the Implementation Walkthrough. We will use the demo algorithm implemented in the walkthrough as a basis and extend it with new functionality. The main topics that will be discussed here are:

  • Printing log messages
  • Using the Message system
  • Marking and releasing bonds to allow specific movements

Printing Log Messages

When developing more complex algorithms, it can be very helpful to print log messages indicating that a certain condition has been met or some event has occurred, or to view data that is not displayed in the UI. In the simulation environment, there are two ways of printing log messages: The simulator's Log and the Unity Editor log system.

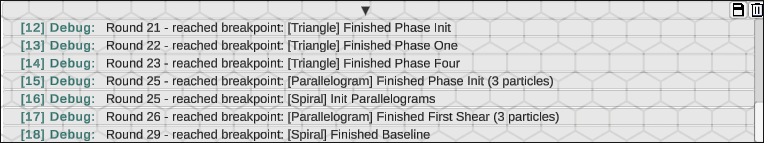

Simulator Log

The simulator Log provides four different log levels: Debug, Entry, Warning and Error. They are printed using the Log.Debug, Log.Entry, Log.Warning and Log.Error methods. Simulator log messages are displayed directly in the UI, at the bottom of the main viewing area. The entire log can also be exported to a text file so that it can be viewed or compared to other logs later. All simulator log messages are additionally sent to Unity's log system so they can be seen in the Editor as well.

Unity Log

Unity's log provides Log, Warning and Error messages, which are printed with the Debug.Log, Debug.LogWarning and Debug.LogError methods. They are displayed in the Editor's Console window (usually displayed in the same location as the Project window). This log system has a search bar, buttons for filtering log entries by type, and a "collapse" function that groups consecutive entries with the same content into single entries.

We can add log messages to our demo algorithm to check if everything works as intended:

public override void ActivateMove()
{
    if (ReceivedBeepOnPartitionSet(0))
    {
        // Received a beep => Perform movement
        Debug.Log("Received beep");
        if (IsContracted())  // Expand East if contracted
            Expand(Direction.E);
        else                 // Contract into tail if expanded
            ContractTail();
    }
}

public override void ActivateBeep()
{
    PinConfiguration pc = GetNextPinConfiguration(); // Get the PinConfiguration instance for next round
    pc.SetToGlobal(0);                               // Collect all pins in partition set 0

    if (isLeader)  // Only the leader should run this code
    {
        if (Random.Range(0.0f, 1.0f) < 0.5f)
        {
            // Decided to move => Send a beep on the global circuit
            Log.Debug("Leader decided to move");
            SendBeepOnPartitionSet(0);
        }
    }
}

Now, whenever the leader decides to perform a movement, the message "Leader decided to move" will be logged and displayed in the UI, and "Received beep" will be printed to the Console by every amoebot receiving a beep on the global circuit. Note that the "Received beep" message will be logged once for each amoebot, so it makes sense to use Unity's log here so that these entries can be collapsed. Adding log messages is especially useful for implementing an algorithm incrementally (print a log message instead of performing the next step) or finding the cause of unintended behavior (trace down the section of code that is executed).

Using the Message System

The communication in our demo algorithm is very simple because the information that has to be transferred is binary: Either a movement has to be performed or not. However, more complex algorithms may require more complex data to be sent via circuits. As explained on the Message reference page, it is possible to transmit data bit by bit over multiple rounds, but the simulator provides an abstraction from this method in the form of Messages. A Message is a constant-size data package that can be sent in a single round like a beep. Custom Message types can be implemented as subclasses of the Message class, but they have to meet certain requirements to function properly. Please refer to the reference page for more details.

We will demonstrate how custom Messages are used by adding new movement directions to our demo algorithm: The amoebots should be able to expand to the North-North East and South-South East directions in addition to the East direction. The leader will pick one of the available directions at random if it decides that a movement should be performed. To accomplish this, we must solve two problems:

  • Telling all amoebots which direction was chosen
  • Ensuring that the movements are performed correctly

To solve the first problem, we will send the chosen movement direction using a custom Message type. The second problem will be solved in the next section.

Defining a Custom Message Type

Custom Messages are defined as subclasses of the Message class. We start by defining our new class in the demo algorithm file, above the algorithm class but inside the algorithm namespace, and giving it a member to store the direction as well as a default constructor without parameters:

public class DemoDirectionMsg : Message
{
    public Direction dir;

    public DemoDirectionMsg()
    {
        dir = Direction.E;
    }
}

The parameterless default constructor is required for the class to work correctly and all members have to be serializable, ideally simple data types. Since the Direction type is an enum, members of this type are allowed.

We can add another constructor for convenience:

public DemoDirectionMsg(Direction d)
{
    dir = d;
}

To complete the Message type, we need to override three methods of the base class: Copy, Equals and GreaterThan. The Copy method is straightforward: It must create a deep copy of the Message and return it.

public override Message Copy()
{
    return new DemoDirectionMsg(dir);
}

The Equals method compares the Message to another instance by value. If the other Message does not have the same type or is null, it must return false.

public override bool Equals(Message other)
{
    DemoDirectionMsg m = other as DemoDirectionMsg;
    return m != null && m.dir == dir;
}

We use the as operator to typecast the parameter other into a DemoDirectionMsg, if possible, and null otherwise. This way, the method will return false if other has the wrong type or is null.

The GreaterThan method defines an ordering of all Messages that is used to determine which Message is prioritized when multiple different Messages are sent on the same circuit in the same round. In such a case, the "greatest" message is the only one that will be delivered. To define this total ordering in our case, we define our Message type to be greater than any other type and use the integer representation of Direction values to compare messages of the same type:

public override bool GreaterThan(Message other)
{
    DemoDirectionMsg m = other as DemoDirectionMsg;
    return m == null || dir.ToInt() > m.dir.ToInt();
}

The custom Message type is now finished, here is the final code:

public class DemoDirectionMsg : Message
{
    public Direction dir;

    public DemoDirectionMsg()
    {
        dir = Direction.E;
    }

    public DemoDirectionMsg(Direction d)
    {
        dir = d;
    }

    public override Message Copy()
    {
        return new DemoDirectionMsg(dir);
    }

    public override bool Equals(Message other)
    {
        DemoDirectionMsg m = other as DemoDirectionMsg;
        return m != null && m.dir == dir;
    }

    public override bool GreaterThan(Message other)
    {
        DemoDirectionMsg m = other as DemoDirectionMsg;
        return m == null || dir.ToInt() > m.dir.ToInt();
    }
}

Sending and Receiving Messages

Next, we want the leader to send a Message with the chosen movement direction on the global circuit. We first have to make the leader choose a direction. For this, we can define a constant array of possible directions from which the leader can choose:

public class DemoParticle : ParticleAlgorithm
{
    static readonly Direction[] movementDirs = new Direction[] { Direction.E, Direction.NNE, Direction.SSE };
    ...
}

This is not a state attribute of the amoebots because it is not a ParticleAttribute. Constants and hyper-parameters like this should always be static and readonly.

When the leader decides that a movement should be performed, it can simply determine a random index in the array. It then has to create a Message object and send it on the global circuit:

public override void ActivateBeep()
{
    PinConfiguration pc = GetNextPinConfiguration(); // Get the PinConfiguration instance for next round
    pc.SetToGlobal(0);                               // Collect all pins in partition set 0

    if (isLeader)  // Only the leader should run this code
    {
        if (Random.Range(0.0f, 1.0f) < 0.5f)
        {
            // Decided to move => Determine the direction
            int dirIdx = Random.Range(0, movementDirs.Length);
            Direction moveDir = movementDirs[dirIdx];
            Log.Debug("Leader decided to move in direction " + moveDir);

            // Send the direction using a Message
            DemoDirectionMsg msg = new DemoDirectionMsg(movementDirs[dirIdx]);
            SendMessageOnPartitionSet(0, msg);
        }
    }
}

Note that the leader will choose a direction even if the amoebots are expanded, in which case they should still just contract into their tail and the chosen direction will be ignored.

We can check whether we have received a Message on a partition set using the ReceivedMessageOnPartitionSet method. If a Message was received, it can be accessed using GetReceivedMessageOfPartitionSet. Because some more changes are necessary to make the algorithm work, we will still only move in the East direction for now.

public override void ActivateMove()
{
    if (ReceivedMessageOnPartitionSet(0))  // Check for received Message
    {
        // Received a Message => Read direction
        Message msg = GetReceivedMessageOfPartitionSet(0);
        Direction moveDir = ((DemoDirectionMsg)msg).dir;  // Typecast to our Message type
        Debug.Log("Received Message with direction " + moveDir);

        // Now perform the movement (TODO)
        if (IsContracted())  // Expand East if contracted
            Expand(Direction.E);
        else                 // Contract into tail if expanded
            ContractTail();
    }
}

Because GetReceivedMessageOfPartitionSet returns the base type Message, we need to cast it to our own Message type DemoDirectionMsg to access the stored direction. If we run this algorithm now, the behavior will be the same as before, but the log output should indicate that the leader chooses a movement direction and sends it to all amoebots.

Marking and Releasing Bonds

Now that all amoebots know the movement direction, we can implement the actual movements. Depending on the movement direction, the bonds may have to be set up differently. For the East direction, we already know that the movements are fine without changing any bonds. However, if we replace the fixed movement direction by North-North East, we get the following result:

North-North East movement without changing bonds

Depending on the use case, this might be exactly what we want, but for this example, we want the amoebots to push each other and perform a proper joint movement in which the distance traveled by the easternmost amoebot increases with the number of amoebots in the line. The reason why this is not already happening is that the bonds are not marked by the expanding amoebots. As we can see in the image above, the bonds (indicated by the thick red connections) always connect the tails of two amoebots. This means that there is no relative movement between any two amoebots in the structure, the amoebots hold each other in place instead.

To change this, each expanding amoebot has to mark its Eastern bond, which will cause it to push the Eastern neighbor amoebot and thereby create a relative movement:

public override void ActivateMove()
{
    ...
    if (IsContracted())
    {
        MarkBond(Direction.E);
        Expand(moveDir);
    }
    ...
}

Note that we do not have to mark the bond if the movement direction is East because in this case, the bond would be marked automatically anyway. Thus, marking the bond for every movement direction does not cause any problems. The resulting behavior is the joint movement we wanted:

North-North East movement with marked East bond

The Eastern bond of each amoebot has moved with its head while the Western bond has stayed at the tail, creating a chain of amoebots pushing each other North-North East.

Releasing Bonds

The contraction movements for all current movement directions cause no problems because each amoebot is only connected to each neighbor by a single bond and because the bonds are on opposite sides of the amoebot. To demonstrate a case in which bonds have to be released to allow a movement, we will add two additional movement directions: North-North West and South-South West. First, we add the new directions to the array of allowed directions:

public class DemoParticle : ParticleAlgorithm
{
    static readonly Direction[] movementDirs = new Direction[] { Direction.E, Direction.NNE, Direction.SSE, Direction.NNW, Direction.SSW };
    ...
}

If we run the algorithm now, the amoebots will expand into the new directions correctly, but when they should contract, an error message is logged, saying "Expanded particle with three bonds to expanded neighbor tries to contract." (or something similar). This is because at the beginning of a round, all possible bonds are active, and after a movement in direction North-North West or South-South West, there will be three bonds between two expanded neighbors:

Bonds after North-North West movement

There is no way in which all of these bonds could behave consistently when any of the amoebots contract. To fix this, we need to figure out which bonds must be released such that a contraction will lead back to the original line structure. In this case, the orientation of the bonds is helpful: Originally, all bonds are oriented horizontally, i.e., the bonds are parallel to the West-East axis. Because bonds can only rotate in handover movements (which we do not have here), we must keep the horizontal bonds and release all non-horizontal bonds:

Bonds to keep and to release

The green bonds must be kept and the red ones must be released. For the South-South West direction, the situation is very similar, but the bonds to be released are oriented on a different axis.

To fix the error, we release the bonds in these directions, depending on the current expansion direction. The HeadDirection method returns the (local) direction of the amoebot's head relative to its tail. Because all amoebots have the same chirality and compass orientation, we can use this direction to determine which bonds have to be released. The final movement activation method looks like this:

public override void ActivateMove()
{
    if (ReceivedMessageOnPartitionSet(0))  // Check for received Message
    {
        // Received a Message => Read direction
        Message msg = GetReceivedMessageOfPartitionSet(0);
        Direction moveDir = ((DemoDirectionMsg)msg).dir;  // Typecast to our Message type
        Debug.Log("Received Message with direction " + moveDir);

        // Now perform the movement
        if (IsContracted())  // Expand if contracted
        {
            MarkBond(Direction.E);
            Expand(moveDir);
        }
        else                 // Contract into tail if expanded
        {
            // Release bonds if necessary
            if (HeadDirection() == Direction.NNW)
            {
                ReleaseBond(Direction.NNE, HEAD);
                ReleaseBond(Direction.NNE, TAIL);
                ReleaseBond(Direction.SSW, HEAD);
                ReleaseBond(Direction.SSW, TAIL);
            }
            else if (HeadDirection() == Direction.SSW)
            {
                ReleaseBond(Direction.NNW, HEAD);
                ReleaseBond(Direction.NNW, TAIL);
                ReleaseBond(Direction.SSE, HEAD);
                ReleaseBond(Direction.SSE, TAIL);
            }
            ContractTail();
        }
    }
}

This concludes our extensions of the demo algorithm. You can read more about bonds and joint movements on the corresponding reference page. There are still some features that have not been discussed yet and which you can read about on the other reference pages. In particular, if you want to develop larger algorithms that use whole other algorithms as primitives, subroutines can be very useful.
